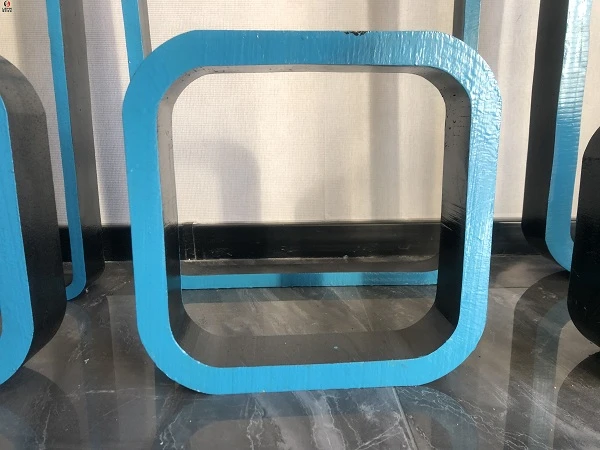

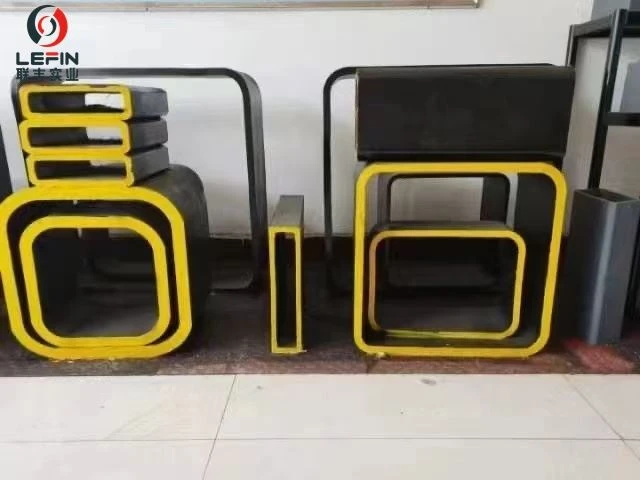

ASTM A501 SQUARE TUBE

Tianjin Lefin Industrial Co., Ltd is one of the most experienced manufacturers and suppliers of astm a501 square tube in China. Please feel free to buy high quality astm a501 square tube from our factory. Good service and reasonable price are available.

ASTM A501 Standard Specification for Hot-Formed Welded and Seamless Carbon Steel Structural Tubing covers black and hot-dipped galvanized hot-formed welded and seamless carbon steel square, round, rectangular, or special shape structural tubing for welded, riveted, or bolted construction or bridges and buildings, and for general structural purposes. Special shape and dimensions of tubing are permitted to be furnished provided that such tubing comply with all other requirements of this specification. Test specimens shall be in accordance with other ASTM documents enlisted herein.

The tubing shall be manufactured either by seamless, furnace-butt welding (continuous welding), electric-resistance welding or submerged arc welding. Testing of the sample specimens shall include one tension test from a length of each of the tubing representing each lot. If any lot fails the mechanical test, it shall be rejected or retested using additional tubing of double the original number from the lot. The lot shall be acceptable if the results of all such retests conform to the specified requirements.

1.1 This specification covers black and hot-dipped galvanized hot-formed welded and seamless carbon steel square, round, rectangular, or special shape structural tubing for welded, riveted, or bolted construction of bridges and buildings, and for general structural purposes.

1.2 Square and rectangular tubing is furnished in sizes 1 to 32 in. (25.4 to 813 mm) across flat sides with wall thicknesses 0.095 to 3.00 in. (2.41 to 76 mm), dependent upon size; round tubing is furnished in NPS 1/2 to NPS 24 (see Note 1) inclusive, with nominal (average) wall thicknesses 0.109 to 1.000 in. (2.77 to 25.40 mm), dependent upon size. Special shape tubing and tubing with other dimensions is permitted to be furnished, provided that such tubing complies with all other requirements of this specification.
