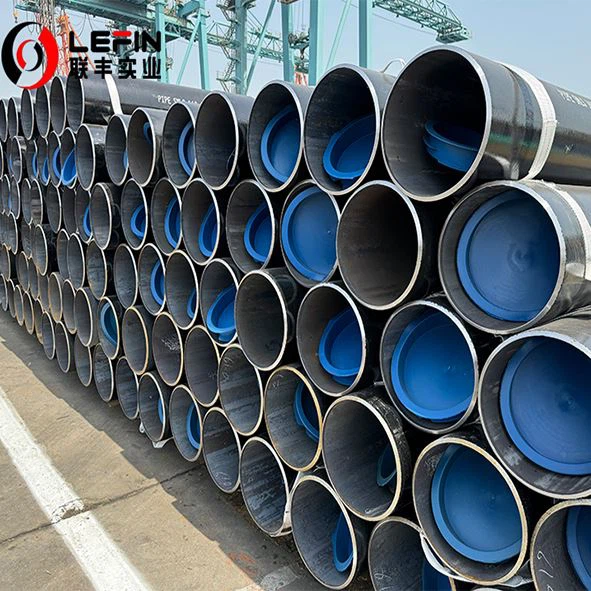

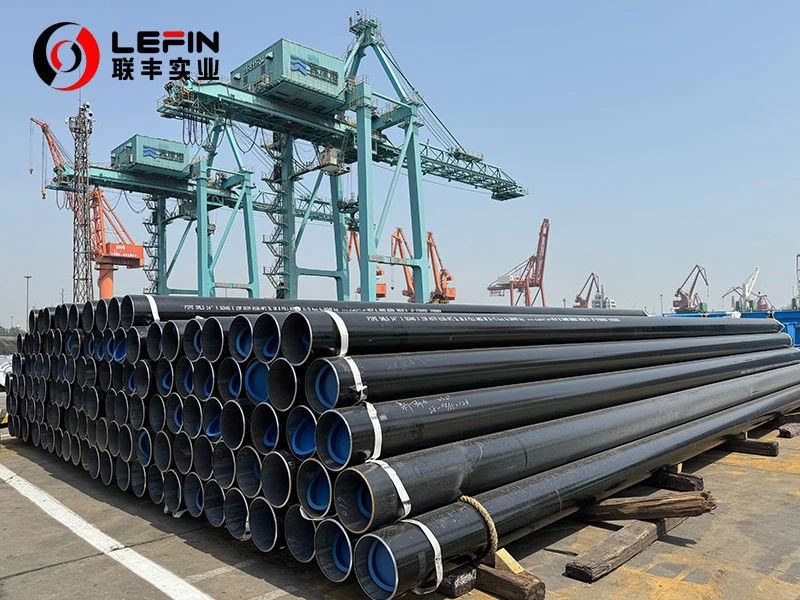

API 5L PSL1 (Product Specification Level 1)
API 5L PSL1 is the base quality level for seamless and welded steel line pipes used in the transportation of oil, gas, and water in the petroleum and natural gas industries. It is the most widely used specification due to its balance of performance, cost-effectiveness, and broad applicability.
Scope and Applicability
Standard: API Specification 5L (American Petroleum Institute).
Material Type: Carbon steel and low-alloy steel.
Manufacturing Methods:
Seamless (SMLS) – Hot-formed without welding.
Welded (ERW, SAW, LSAW, DSAW, etc.) – Electric Resistance Welded (ERW), Submerged Arc Welded (SAW), etc.
Primary Applications:
- Onshore & offshore oil & gas pipelines.
- Water injection & distribution pipelines.
- Structural applications (when permitted by project specs).
Chemical Composition Requirements
PSL1 has less stringent chemical control compared to PSL2. Key characteristics:
-
Standard Grades & Chemical Limits
| Grade | C (max) | Mn (max) | P (max) | S (max) |
|---|---|---|---|---|
| A25 | 0.21% | 0.60% | 0.030% | 0.030% |
| A | 0.22% | 0.90% | 0.030% | 0.030% |
| B | 0.26% | 1.20% | 0.030% | 0.030% |
| X42 | 0.26% | 1.30% | 0.030% | 0.030% |
| X46 | 0.26% | 1.40% | 0.030% | 0.030% |
| X52 | 0.26% | 1.40% | 0.030% | 0.030% |
| X56 | 0.26% | 1.40% | 0.030% | 0.030% |
| X60 | 0.26% | 1.40% | 0.030% | 0.030% |
| X65 | 0.26% | 1.45% | 0.030% | 0.030% |
| X70 | 0.26% | 1.65% | 0.030% | 0.030% |
No strict carbon equivalent (CE) limits (unlike PSL2, which requires CE ≤ 0.43% for X70).
Sulfur & phosphorus are controlled to improve weldability but are less strict than PSL2.
Mechanical Properties
-
Tensile & Yield Strength Requirements
| Grade | Yield Strength (min) [MPa] | Tensile Strength [MPa] |
|---|---|---|
| A25 | 172 | 310 |
| A | 207 | 331 |
| B | 241 | 414 |
| X42 | 290 | 414 |
| X46 | 317 | 434 |
| X52 | 359 | 455 |
| X56 | 386 | 490 |
| X60 | 414 | 517 |
| X65 | 448 | 531 |
| X70 | 483 | 565 |
-
Impact Testing (Charpy V-Notch) – Optional for PSL1
Not mandatory unless specified by the purchaser.
If required, test temperature and energy values must be agreed upon.
-
Hardness Testing
No strict hardness limits (unlike PSL2, which may require HRC ≤ 22 for sour service).
Testing Requirements
PSL1 pipes undergo basic testing to ensure their quality and performance. These tests include:
- Hydrostatic Testing: To verify the pipe's ability to withstand internal pressure.
- Tensile Testing: To measure the yield strength, tensile strength, and elongation.
Advanced testing such as fracture toughness and impact testing is not required for PSL1 pipes, unless specified by the customer.
Advantages of PSL1 Over PSL2
| Parameter | PSL1 | PSL2 |
|---|---|---|
| Cost | Lower (fewer tests) | Higher (strict controls) |
| Impact Testing | Optional | Mandatory |
| Chemical Control | More flexible | Strict (low S/P, CE limits) |
| NDT Requirements | Basic (hydrostatic) | Full UT/RT mandatory |
| Lead Time | Shorter (easier production) | Longer (more inspections) |
Common Applications
Oil & Gas Gathering Lines (low-pressure fields).
City Gas Distribution Networks (Grade B, X42 common).
Water Pipelines (non-corrosive environments).
Structural Uses (piling, scaffolding).
API 5L PSL1 is the most commonly used pipeline specification due to its cost-efficiency, broad material availability, and sufficient performance for standard applications. While PSL2 offers enhanced toughness and stricter quality control, PSL1 remains the default choice for most onshore and non-critical pipelines. Buyers should specify PSL2 only when high-pressure, low-temperature, or sour service conditions demand it.
