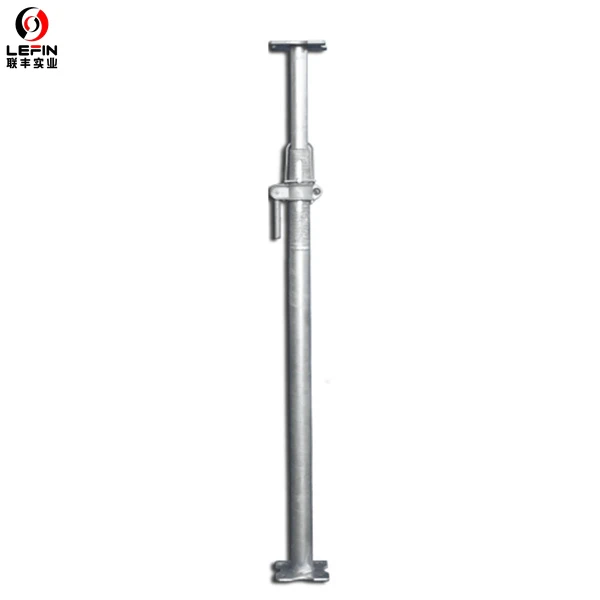

Australia Acrow Prop

Australia Acrow Prop Components in Detail

1.Australia Acrow Prop Head and Base Plate: 150mm x 150mm steel plates with drilled holes for securing to timber beams or facilitating the use of accessories.

2.Australia Acrow Prop Inner-Tube: 48.3mm OD tube with holes at 152.5mm centres.

3.Tube diameter enables standard scaffold tube and couplers to be used for bracing purposes.

4.Australia Acrow Prop Outer-Tube: 60.3mm OD tube which accommodates the thread section and slot for fine height adjustment. Reduction couplers enable standard scaffold tube to be connected to the ACROW PROP outer-tube for bracing purposes.

5. Australia Acrow Prop Thread: The thread on the outer-tube provides fine adjustment within the props given range. The rolled thread retains the wall thickness of the tube and thereby maintains maximum strength.

6.Australia Acrow Prop Nut: The self-cleaning ACROW PROP nut has a hole at one end for easy turning when the prop handle is close to walls. An extra nut can be added to convert the prop to a push-pull strut.

Mob:008615122519420

Service

1.Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.

2.Timeliness: 24 hours online.Provide consulting and quotation services for customers all the time.

3.Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.

4.Integrity: If The customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.

5.Longevity: Establish good long-term relationship with customers.

6.Special Design or darawing can be customized.
