Tianjin Lefin Industrial Co., Ltd is one of the most experienced manufacturers and suppliers of h section in China. Please feel free to buy high quality h section from our factory. Good service and reasonable price are available.
H sECTION

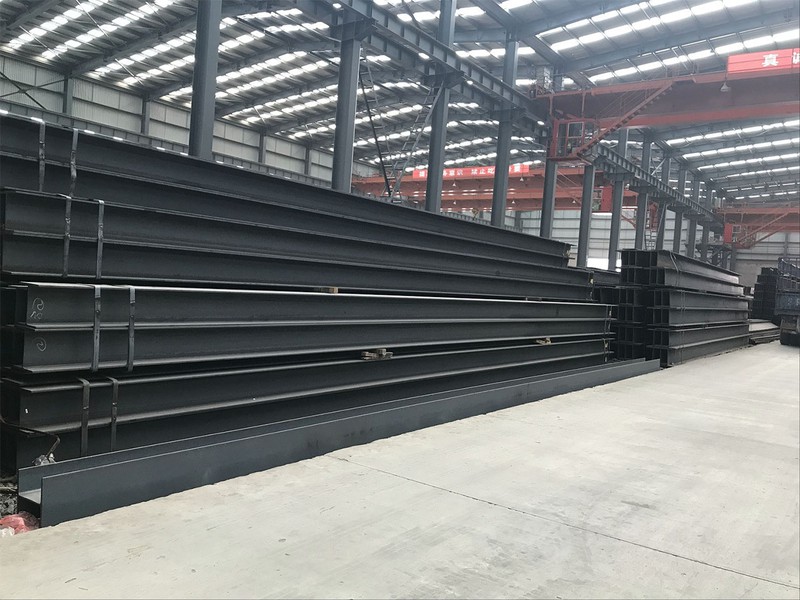

H Section,characterized by its H-shaped cross-section, is a versatile structural steel product widely used in construction and engineering due to its high load-bearing capacity, structural stability, and efficiency in weight distribution, offering a cost-effective solution for various applications such as buildings, bridges, and industrial structures.
Common Standards And steel grades
Standards
H-beam steel is manufactured and used according to various international standards to ensure quality and consistency. Some of the common standards include:
- American Institute of Steel Construction (AISC): This standard provides specifications for the design, fabrication, and erection of structural steel, including H-beams .
- European Standard (EN 10025): Specifies the grades of carbon steel and low-alloy steel for structural purposes, including H-beam steel .
- Japanese Industrial Standard (JIS G3192): Defines the dimensions, shape, weight, and permissible deviations for hot-rolled H-beams .
Steel Grades
H-beam steel is produced in various grades, each with distinct mechanical properties:
- ASTM A36: A common structural steel grade in the United States with a minimum yield strength of 250 MPa .
- ASTM A992: Frequently used in North America for structural steel, with a minimum yield strength of 345 MPa .
- S235JR/S275JR/S355JR: European grades specified under EN 10025, with minimum yield strengths of 235 MPa, 275 MPa, and 355 MPa, respectively .
- SS400: A standard structural steel grade in Japan, with a minimum yield strength of 245 MPa .
manufacturing processes
H-beam steel is produced through a series of meticulous manufacturing processes that ensure its structural integrity and performance. Here's an overview of the production process:
Melting and Casting: The process begins with the melting of scrap steel in an electric arc furnace or a basic oxygen furnace to produce molten steel. This molten steel is then continuously cast into billets or blooms of appropriate sizes.
Rolling: The billets or blooms are reheated and passed through a series of rolling mills to form the desired H-shaped profile. This process involves hot rolling, where the steel is shaped at high temperatures
Caliber Rolling: In the roughing stage, caliber rolling is conducted to obtain the same cross-sectional shape as that of the rolls. After producing a near H shape by caliber rolling, the product is finished by a universal mill and an edging mill.
Cooling and Straightening: Post-rolling, the H-shaped steel sections are cooled and straightened to ensure dimensional accuracy and mechanical properties.
Cutting and Finishing: The H-shaped steel sections are cut to the required lengths and undergo surface treatment processes such as shot blasting or painting.
Steel Inspection: Finished H-beam steel undergoes inspection for size, shape, and accuracy. Adjustments or corrections are made if any discrepancies are detected.
Advanced Manufacturing Techniques: Modern manufacturing techniques, such as computer-aided design (CAD) and automated welding, ensure greater precision and consistency in the production of H-Beams.
Universal Rolling Mills: In modern steel rolling production, H-beams are rolled using universal rolling mills where the web of the H-beam is rolled between the upper and lower horizontal rolls, and the flanges are formed by the vertical rolls.
Water-Cooled Forming: The H-steel passes through a finishing mill to control the width of the flange, and the blank is repeatedly rolled several times, finally passing through a water-cooled forming process.
These steps combine to produce H Section with precise dimensions and superior mechanical properties, making it a preferred choice for various structural applications in construction and engineering.
H Section, known for its H-shaped cross-section, possesses several key characteristics that make it a popular choice in construction and engineering. Here are the main features of H Section steel:
01
High Load-Bearing Capacity
H Section have a wide flange and a vertical web, which allows them to withstand significant vertical and horizontal stresses, making them ideal for supporting large structures and bearing heavy loads.
02
Structural Stability
The broad flanges of H Section provide increased resistance to bending and torsional stresses, helping to maintain the integrity of the entire structure, especially in applications that require strong support and resistance to deformation.
03
Construction Versatility
H Section are available in a variety of sizes and specifications, allowing for customization based on specific project needs. This enables engineers and architects to easily design and construct structures of various sizes and configurations.
04
Efficient Weight Distribution
The H-shaped cross-section of the beam ensures efficient distribution of weight along its length, reducing stress concentration points and promoting a more uniform distribution of forces, thereby enhancing overall structural integrity and load-bearing capacity.
05
Cost-Effectiveness
H Section is often considered an economical choice for construction projects. Its high strength-to-weight ratio means less steel is needed to achieve the required structural integrity, potentially leading to savings in material and transportation costs.
06
Broad Range of Applications
H Sections are used in a variety of construction projects, including buildings, bridges, industrial structures, and infrastructure development. They are commonly used in load-bearing structures such as columns, beams, trusses, and frames where strength and stability are required.
07
Ease of Welding and Connecting
H Sections are easy to weld, allowing for strong and efficient connections between beams and other structural components. This facilitates seamless integration into complex building systems and provides flexibility during the design and construction process.
08
Durability and Longevity
H Section is known for its durability and longevity. It is resistant to corrosion, deformation, and structural fatigue, ensuring that structures built with H Section maintain their integrity over time.
These unique characteristics make H-beam steel a reliable and widely used material in the construction industry, enhancing the strength, stability, and durability of various structures.
Applications
H Section is extensively used in a variety of applications due to its structural properties:
Construction:
H Sections are used in building structures, such as beams, columns, trusses, and frames, where strength and stability are critical .
Bridges:
They are utilized in the construction of bridges, especially long-span bridges, due to their high load-bearing capacity .
Industrial Structures:
H Sections are used in industrial buildings, petrochemical plants, and power facilities for structural support and load-bearing .
Infrastructure Development:
They play a role in the development of infrastructure, including highways and other transportation systems .
