Tianjin Lefin Industrial Co., Ltd is one of the most experienced manufacturers and suppliers of astm a500 square hollow section in China. Please feel free to buy high quality astm a500 square hollow section from our factory. Good service and reasonable price are available.

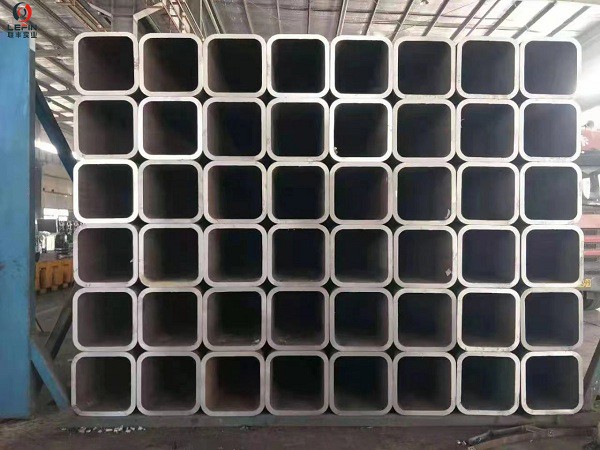

STEEL HOLLOW SECTION
Standard:
ASTM A500 Grade B
ASTM A513 (1020-1026)
ASTM A501 GR.B
EN 10210:S235,S355,S235JRH,
S355J2H,S355NH
EN 10219:S235,S355,S235JRH,
S275J0H, S275J2H, S355J0H, S355J2H
ASTM A500 Hollow section（It can be customized according to customer requirements）
| Size by Inch (diameter) | Thickness | Sizes by MM (diameter) | Thickness |
inch | inch | mm | mm |
1/2" x 1/2" | 0.065" | 16mm×16mm | 0.4mm～1.5mm |
| 3/4" x 3/4" | 0.049" | 18mm×18mm | 0.4mm～1.5mm |
0.065" | 20mm×20mm | 0.4mm～3mm | |
0.083" | 22mm×22mm | 0.4mm～3mm | |
0.120" | 25mm×25mm | 0.6mm～3mm | |
1" x 1" | 0.049" | 30mm×30mm | 0.6mm～4mm |
0.058" | 32mm×32mm | 0.6mm～4mm | |
0.065" | 34mm×34mm | 1mm～2mm | |
0.072" | 35mm×35mm | 1mm～4mm | |
0.083" | 38mm×38mm | 1mm～4mm | |
0.095" | 40mm×40mm | 1mm～4.5mm | |
0.109" | 44mm×44mm | 1mm～4.5mm | |
0.120" | 45mm×45mm | 1mm～5mm | |
1 1/8" x 1 1/8" | 0.035" | 50mm×50mm | 1mm～5mm |
0.049" | 52mm×52mm | 1mm～5mm | |
0.065" | 60mm×60mm | 1mm～5mm | |
0.109" | 70mm×70mm | 2mm～6mm | |
0.120" | 75mm×75mm | 2mm～6mm | |
| 1 1/4" x 1 1/4" | 0.049" | 76mm×76mm | 2mm～6mm |
0.065" | 80mm×80mm | 2mm～8mm | |
0.072" | 85mm×85mm | 2mm～8mm | |
0.083" | 90mm×90mm | 2mm～8mm | |
0.109" | 95mm×95mm | 2mm～8mm | |
0.120" | 100mm×100mm | 2mm～8mm | |
0.135" | 120mm×120mm | 4mm～8mm | |
0.156" | 125mm×125mm | 4mm～8mm | |
0.188" | 130mm×130mm | 4mm～8mm | |
| 1 1/2" x 1 1/2" | 0.049" | 140mm×140mm | 6mm～10mm |
0.065" | 150mm×150mm | 6mm～10mm | |
0.072" | 160mm×160mm | 6mm～10mm | |
0.083" | 180mm×180mm | 6mm～12mm | |
0.109" | 200mm×200mm | 6mm～30mm | |
0.120" | 220mm×220mm | 6mm～30mm | |
0.140" | 250mm×250mm | 6mm～30mm | |
| 0.188" | 270mm×270mm | 6mm～30mm | |
| 0.250" | 280mm×280mm | 6mm～30mm | |
| 1 3/4" x 1 3/4" | 0.065" | 300mm×300mm | 8mm～30mm |
| 0.083" | 320mm×320mm | 8mm～30mm | |
| 0.095" | 350mm×350mm | 8mm～30mm | |
| 0.109" | 380mm×380mm | 8mm～30mm | |
| 0.120" | 400mm×400mm | 8mm～30mm | |
| 0.188" | 420mm×420mm | 10mm～30mm | |
| 2" x 2" | 0.049" | 450mm×450mm | 10mm～30mm |
| 0.065" | 480mm×480mm | 10mm～30mm | |
| 0.083" | 500mm×500mm | 10mm～30mm | |
| 0.109" | 550mm×550mm | 10mm～40mm | |
| 0.120" | 600mm×600mm | 10mm～40mm | |
| 0.145" | 700mm×700mm | 10mm～40mm | |
| 0.165" | 800mm×800mm | 10mm～50mm | |
| 0.188" | 900mm×900mm | 10mm～50mm | |
| 0.250" | 1000mm×1000mm | 10mm～50mm | |
| 0.312" | |||
| 2 1/4" x 2 1/4" | 0.188" | ||
| 0.250" | |||
| 2 1/2" x 2 1/2" | 0.083" | ||
| 0.109" | |||
| 0.120" | |||
| 0.188" | |||
| 0.250" | |||
| 0.312" |
| 3" x 3" | 0.083" |
0.120" | |
0.188" | |
0.250" | |
0.312" | |
| 0.375" | |
| 3 1/2" x 3 1/2" | 0.120" |
0.188" | |
0.250" | |
0.312" | |
0.375" | |
| 4" x 4" | 0.083" |
| 0.120" | |
| 0.156" | |
| 0.188" | |
0.250" | |
0.312" | |
0.375" | |
0.500" |
| 4 1/2" x 4 1/2" | 0.188" |
0.250" | |
0.312" | |
0.375" | |
| 5" x 5" | 0.188" |
0.250" | |
0.312" | |
0.375" | |
0.500" | |
6" x 6" | 0.188" |
0.250" | |
0.312" | |
0.375" | |
0.500" | |
0.625" | |
7" x 7" | 0.188" |
0.250" | |
0.312" | |
0.375" | |
0.500" | |
0.625" |
8" x 8" | 0.188" |
0.250" | |
0.312" | |
0.375" | |
0.500" | |
0.625" | |
9" x 9" | 0.188" |
| 0.250" | |
0.312" | |
0.375" | |
0.500" | |
0.625" | |
10" x 10" | 0.188" |
0.250" | |
0.312" | |
0.375" | |
0.500" | |
0.625" | |
| 12" x 12" | 0.250" |
0.312" | |
0.375" | |
0.500" | |
0.625" | |
14" x 14" | 0.312" |
0.375" | |
0.500" | |
0.625" | |
16" x 16" | 0.312" |
0.375" | |
0.500" | |
0.625" |
Delivery time: 20 days -- 30 days
Shipment : 20GP 40HQ and bulk vessel shipment
