Tianjin Lefin Industrial Co., Ltd is one of the most experienced manufacturers and suppliers of astm a500 gr.c tube in China. Please feel free to buy high quality astm a500 gr.c tube from our factory. Good service and reasonable price are available.
Brief Introduction

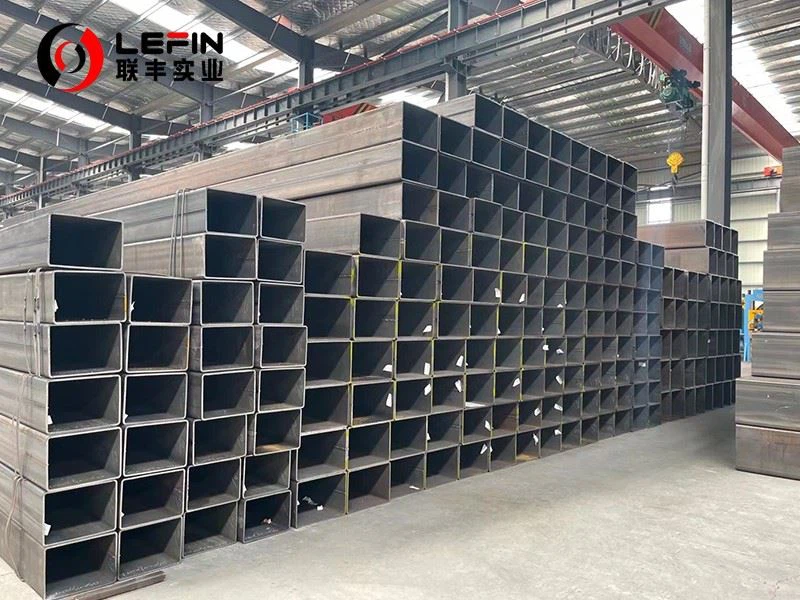

ASTM A500 GR.C TUBE
Standard: ASTM A500
Grade:GR.A, GR.B, GR.C, GR.D
Outside diameter: 20-660MM Wall Thickness: 1.3-16MM
Outside diameter: 20*20-1200*1200MM Wall Thickness: 1.3-50MM
Outside diameter: 20*20-1500*1500MM Wall Thickness: 1.2-50MM
The Wall Thickness Tolerance: ±5%
Length: normally 5.8m, 6m, 12m or as your required
Surface Treatment: Bare Finish, Painting, Oiling, Galvanzation, 3PE, FBE coated......
Chemical Composition
| ASTM A500 ROUND STRUCTURAL TUBING | |||||
| GRADE | TENSILE STRENGTH | YIELD STRENGTH | ELONGATION | ||
| GR.A | 45000psi | 310MPa | 33000psi | 230MPa | 25% |
| GR.B | 58000psi | 400MPa | 42000psi | 290MPa | 23% |
| GR.C | 62000psi | 425MPa | 46000psi | 315MPa | 21% |
| GR.D | 58000psi | 400MPa | 36000psi | 250MPa | 23% |
| ASTM A500 SHAPED STRUCTURAL TUBING | |||||
| GRADE | TENSILE STRENGTH | YIELD STRENGTH | ELONGATION | ||
| GR.A | 45000psi | 310MPa | 39000psi | 270MPa | 25% |
| GR.B | 58000psi | 400MPa | 46000psi | 315MPa | 23% |
| GR.C | 62000psi | 425MPa | 50000psi | 345MPa | 21% |
| GR.D | 58000psi | 400MPa | 36000psi | 250MPa | 23% |
Physical requirement
| COMPOSITION, % | ||||
| GRADE A, B, and D | GRADE C | |||
| HEAT ANALYSIS | PRODUCT ANALYSIS | HEAT ANALYSIS | PRODUCT ANALYSIS | |
| Carbon(C),max | 0.26 | 0.30 | 0.23 | 0.27 |
| Manganese(Mn),max | 1.35 | 1.40 | 1.35 | 1.40 |
| Phosphorus(P),max | 0.035 | 0.045 | 0.035 | 0.045 |
| Sulfur(S),max | 0.035 | 0.045 | 0.035 | 0.045 |
| Copper(Cu),min | 0.20 | 0.18 | 0.20 | 0.18 |
Characteristics
Materials and forming processes
Material type:
Carbon steel.
Forming process:
Cold forming process, welding or seamless method can be selected. The cold forming process increases its yield strength and tensile strength while ensuring tight dimensional tolerances for structural applications.
Performance characteristics
High strength and durability:
In particular, grade B, C and D pipes have high strength and durability and are suitable for heavy load and high stress conditions.
Weldability:
With excellent weldability, the pipe can be easily welded to other materials without losing structural integrity.
Impact resistance:
High strength and good uniformity, with good impact resistance.
Corrosion resistance:
Although it has a certain resistance to general environmental conditions, corrosion resistance can be improved by additional treatments such as galvanizing or painting.
Applications
Steel frame: Support structures used in buildings, such as columns, beams and frames, that can withstand heavy loads and high stresses.
Stairs and balustrades: as safety support structures within the building.
Bridge construction: Used for the main load-bearing components of Bridges such as beams and longitudinal beams to ensure the reliability of the structure under various environmental conditions.
Mechanical brackets and equipment frames: used to support production lines and heavy machinery to ensure the stability and safety of equipment.
Conveyor system support: Used to support conveyor belts and piping systems.
Industrial equipment: such as power equipment, mining machinery, etc.
Railway structure: Used for railway track support and signal towers.
Car and truck frames: used for vehicle frames and mechanical support components.
Ship structural frame: used for support structures and chassis of ships.
Street lights and poles: used to support urban street lights and power transmission towers.
Traffic sign support: Support for road signs and traffic signal systems.
Water pipes and pipe supports: used to support urban water supply and drainage systems.
Greenhouse structure: The supporting frame for the greenhouse.
Irrigation system: Used to support irrigation pipes.
Communication tower: Used to support communication equipment to ensure its stability and safety in harsh environments.
Oil and gas industry: Used in the construction of oil RIGS, pipelines and facilities.
Electric vehicle frames: With its high strength and durability, ASTM A500 tubing is expected to find widespread use in electric vehicle frames.
Clean energy facilities: support structures such as solar and wind projects.
Construction projects: In large commercial buildings and high-rise buildings, ASTM A500 tubing is widely used in frame structures to provide high strength and stable support.
Bridge construction: In a large bridge project, ASTM A500 tubing is used as the main load-bearing component to ensure the long-term stability of the bridge in complex environments.
Industrial equipment: In machinery manufacturing plants, ASTM A500 tubing is used in the support of production lines and equipment frames to ensure the stability of equipment operation.
Due to its excellent performance and versatility, ASTM A500 tubing has become an indispensable material for construction, industry, transportation and infrastructure.
